| Product Image | Description | Cat. No. |
|---|---|---|
 |

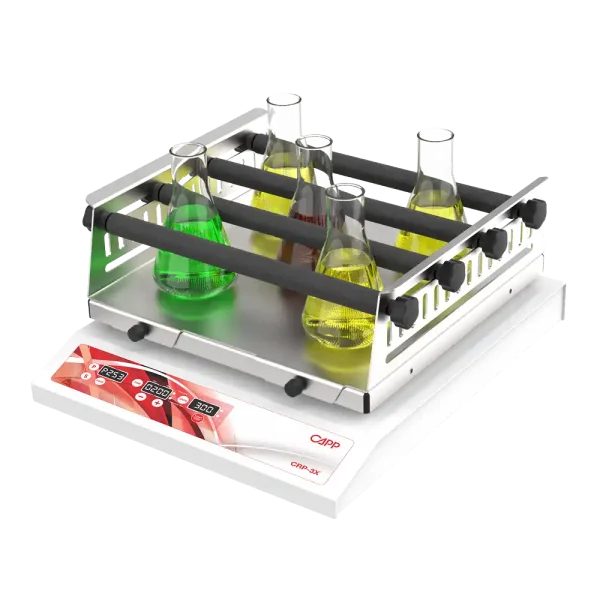

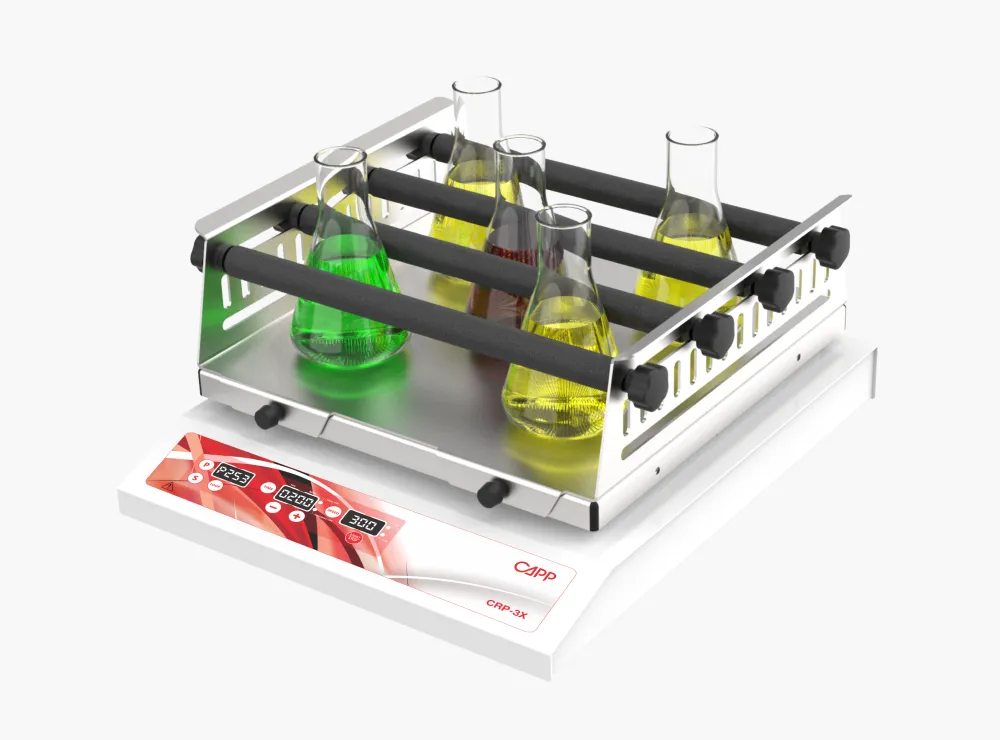

CAPP Rondo Platform Shaker | CRP-3X |
 |
Universal Platform with Adjustable Bars | CRP-U |
 |
Disk Attachment Base Plate | CRP-D |
 |
Base Plate with 9 Plastic Clamps: 9 x 250mL | CRP-C9-250 |
 |
Base Plate with 9 Plastic Clamps: 9 x 500mL | CRP-C9-500 |
 |
Funnel Attachment | CRP-F |
 |
Base Plate with 9 Stainless Steel Clamps: 9 x 250mL | CRP-CS9-250 |
 |
Base Plate with 9 Stainless Steel Clamps: 9 x 500mL | CRP-CS9-500 |
 |
Stainless steel clamp for CRP-3X, 100 mL flask | CRP-CS-100 |
|
Stainless steel clamp for CRP-3X, 150 mL flask | CRP-CS-150 |
|
Stainless steel clamp for CRP-3X, 250 mL flask | CRP-CS-250 |
|
Stainless steel clamp for CRP-3X, 500 mL flask | CRP-CS-500 |
|
Stainless steel clamp for CRP-3X, 1000 mL flask | CRP-CS-1000 |
High Load Capacity – Supports up to 7.5 kg for efficient and uniform mixing.
Orbital Motion – Operates with a 20mm orbital diameter for thorough sample agitation.
Wide Speed Range – Adjustable from 50 to 300 RPM, catering to various mixing needs.
Extended Timer Function – Programmable from 1 minute to 99 hours and 59 minutes for long-duration protocols.
BLDC Motor Technology – Brushless DC motor ensures maintenance-free, long-lasting operation ideal for extended runs.
Multiple Programmable Modes – Includes motion direction, speed, time, dwell time, sequence, and loop operation.
Customizable Protocols – Stores up to 6 individual protocols, each with 9 sub-protocols, for optimized workflow management.
Universal Compatibility – Supports various attachment platforms, making it compatible with most commonly used lab vessels.
Auto Power On Feature – Resumes operation after a power failure, ensuring uninterrupted workflow.
| Specification | Value |
|---|---|
| Shaking Movement | Orbital (Ø20 mm) / Linear |
| Max. Loading Capacity | 7.5 kg |
| Speed Range | 50-300 RPM |
| Motor Type | Brushless DC motor |
| Time Settings | 0 to 99 hours and 59 minutes |
| Dimensions (W x D x H) | 408 x 350 x 99 mm |
| Platform Size | 330 x 330 mm |
| Protection Class | IP 21 |
| Programmable Features | Up to 6 individual protocols, each with 9 sub-programs |
| Programmable Looping | Yes |
