AHN myLab® Heated Magnetic Stirrer 1500 RPM

Product Description

The AHN myLab® Hot Plate Stirrer is available in 3 models (5-place, 10-place, and 15-place) for the synchronous heating and stirring of multiple liquid samples. Whether you’re working with small volumes or larger batches, this versatile, high-performance device ensures uniform mixing and precise heating in various laboratory applications. The AHN myLab® Hot Plate Stirrer is ideal for laboratories seeking precision, versatility, and safety in their heating and stirring processes. With its compact design, powerful motor, and user-friendly controls, it’s the perfect addition to any lab working with temperature-sensitive or multi-sample applications.

Product Variants Table

Product ImageDescriptionCat. No.

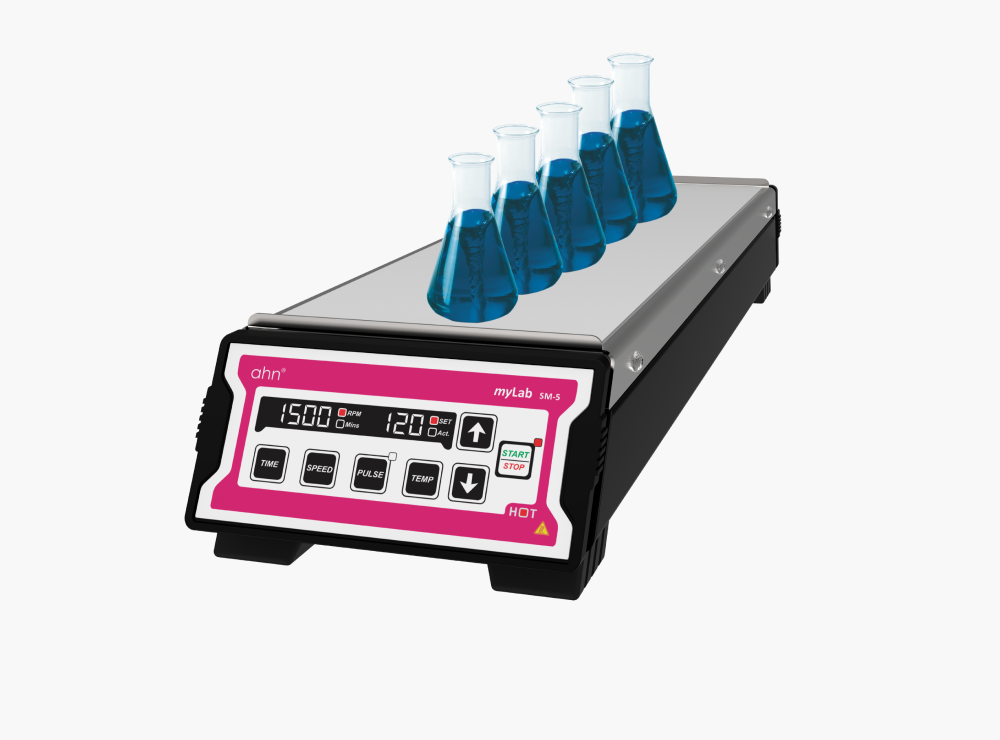

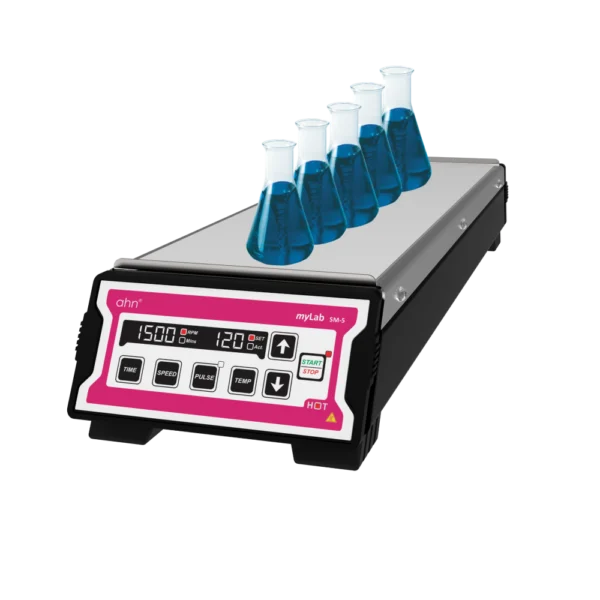

AHN-myLab-SM-5-2 myLab® SM-05 5-plate Heated Magnetic Stirrer 1500 RPM 7-305-00-0
Heated-Magnetic-Stirrer-1500-RPM-SM-05-SM-10-SM-15-2 myLab® SM-10 10-plate Heated Magnetic Stirrer 1500 RPM 7-310-00-0
AHN-myLab-SM-10-2 myLab® SM-15 15-plate Heated Magnetic Stirrer 1500 RPM 7-315-00-0
stir-bar Magnetic stirring bar - PTFE coated, 25x8 mm (Optional) CRS-MAG

Advanced Technology for Superior Performance

  • Powerful Brushless DC Motor – Provides maintenance-free operation, delivering consistent stirring performance at both low and high speeds.
  • Microprocessor-Controlled – Maintains set speed under changing loads and viscosities, ensuring stable and precise mixing. The last-run memory feature saves your previous settings for easy recall.
  • Variable Speed Control – Ranges from 300 to 1500 rpm in 10 rpm increments to meet the needs of your specific samples.
  • Temperature Control – Heats samples up to 120°C, with a “Hot” warning light for temperatures above 50°C, ensuring safe and effective heating.
  • Built for Versatility and Durability
  • Stainless Steel Platform – The non-slip silicone resin pad is corrosion-resistant and provides a stable surface for all your stirring needs.
  • Compact Design – The low-profile, lightweight construction ensures it fits seamlessly into any workspace without occupying excessive bench space.
  • Homogeneous Heating – Ensures consistent temperature distribution across the entire heating plate for even mixing and reliable results.
  • User-Friendly Features for Comfort & Control
  • Independent Digital Displays – Display speed, time, and temperature for easy monitoring.
  • Touchpad Controls – Offers intuitive operation, making it simple to adjust settings for speed, time (1-999 minutes), and temperature.
  • Pulse Mode – Programmable with 30-99 second intervals, improving mixing efficiency by reversing stirring direction.
  • Infinite Mode – Allows continuous stirring and heating for ongoing processes.



Safe & Secure Operation

  • Closed Design – Protects the unit from accidental spills and simplifies cleaning.
  • Waterproof Heater with Built-in Safety Cut-Off – Provides protection against overheating and ensures reliable operation.
  • Non-Slip Rubber Feet – Ensures stability, even during maximum stirring speeds.
  • IP 42 Compliant – Provides dust and water resistance for added durability.
Specification 5 Positions 10 Positions 15 Positions
Max speed Adjustable speed ranging 300 to 1500 RPM
Number of Stirring Positions 5 10 15
Max. Stirring Quantity 400 mL per position 400 mL per position 400 mL per position
Recommended Stir Bar Length 25 mm 25 mm 25 mm
Protection Class IP42 IP42 IP42
Dimensions (WxDxH) 136x562x75 mm 196x565x75 mm 282x568x76 mm
Weight 3.0 kg 5.0 kg 7.0 kg
